7D‑MAX Ultrasonic Beauty Device
Offers non‑invasive facial lifting, body firming and skin rejuvenation using superpulse ultrasonic technology, delivering safe, efficient and layered anti‑aging solutions for clinics and beauty salons.
- Layered Ultrasonic Precision - Targeted skin layers, focused energy.
- Dual‑Handle Efficiency - Collaborative work, faster treatment.
- Non‑Invasive & Safe - No surgery, minimal discomfort.
- Intelligent Operation - HD touchscreen, auto probe recognition.
- Full‑Scenario Application - For face, eye and body care.
Working Principle
The 7D‑MAX adopts high‑frequency forward‑reverse linked superpulse ultrasound with dual‑handle synchronous output.
- It uses 2.0MHz, 4.0MHz, and 5.5MHz ultrasonic frequencies to release focused energy at controllable depths.
- Probes of different specifications act on the epidermal layer, dermal layer, and SMAS fascia layer respectively to stimulate collagen regeneration, repair loose tissue, and lift the muscle base.
- It supports MP multi‑point line mode and Normal single mode, with adjustable energy, dot spacing, and frequency to realize layered, precise, and personalized treatment without damaging surrounding skin tissues.

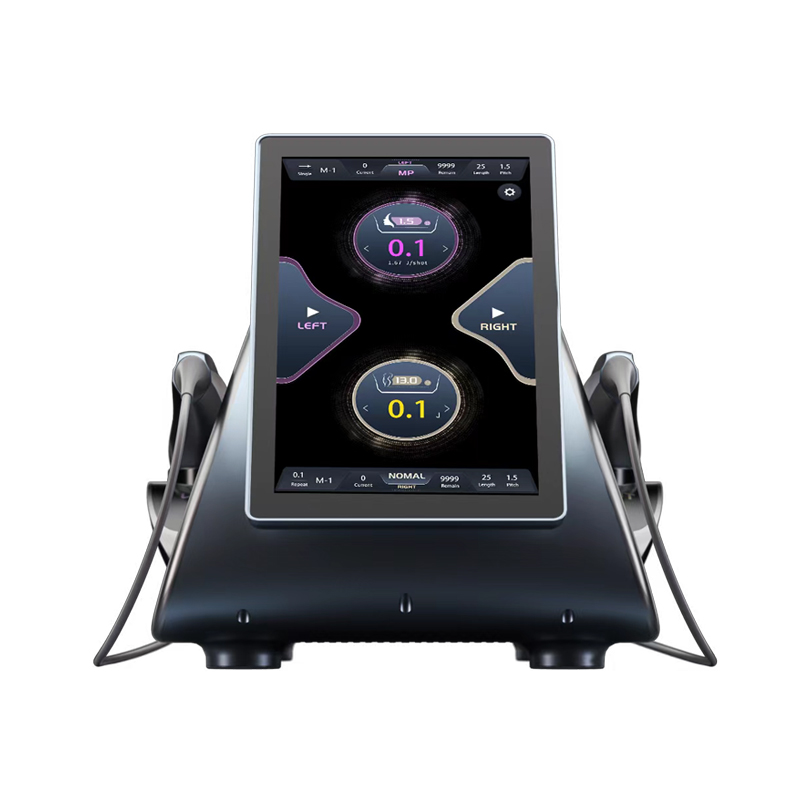

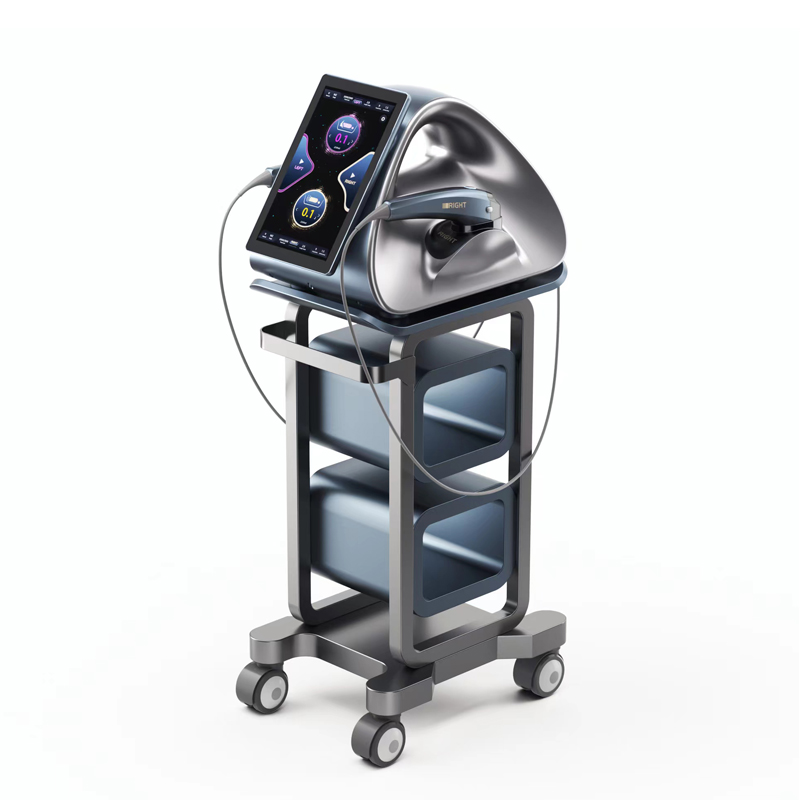

Main Machine Host

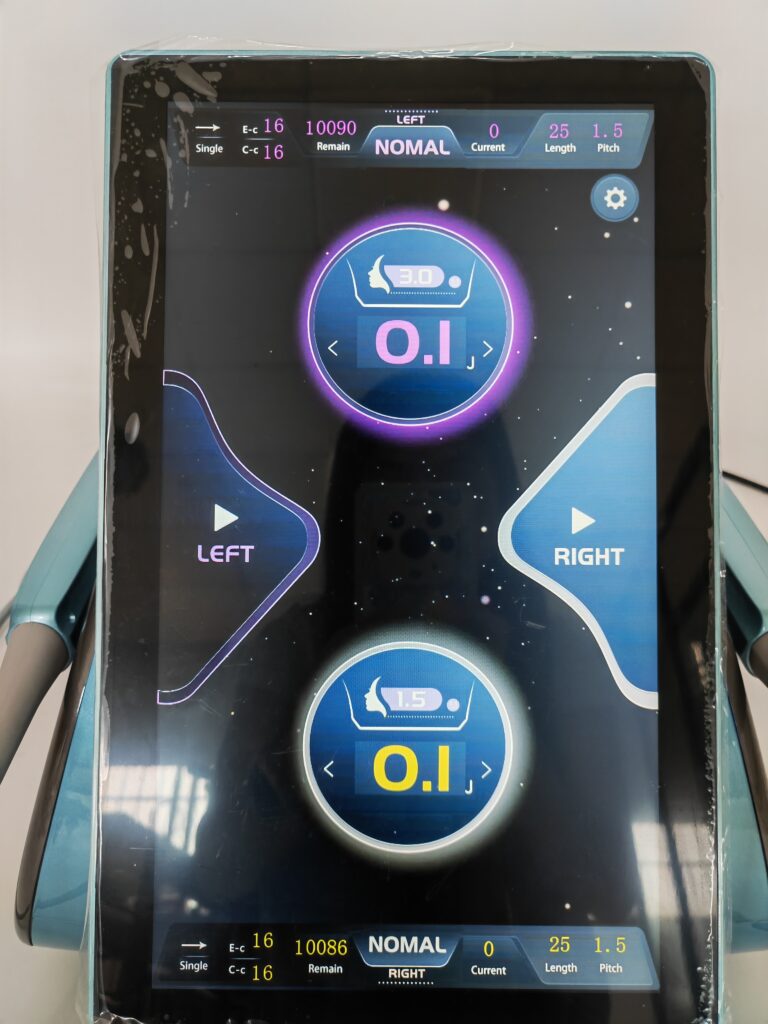

- 13.3‑inch HD intelligent touch screen with full dynamic interface, supporting one‑key parameter storage (M1/M2/M3) and real‑time working status display.
- Automatic probe identification, intelligent parameter matching, and background data statistics (total shot count, usage records).
- Global compatible power supply: AC 110V–220V, 50/60Hz, rated power 650W, with multiple safety protections.
- Net weight 10kg, gross weight 20kg, compact size 60×43×57cm for easy placement and transportation.

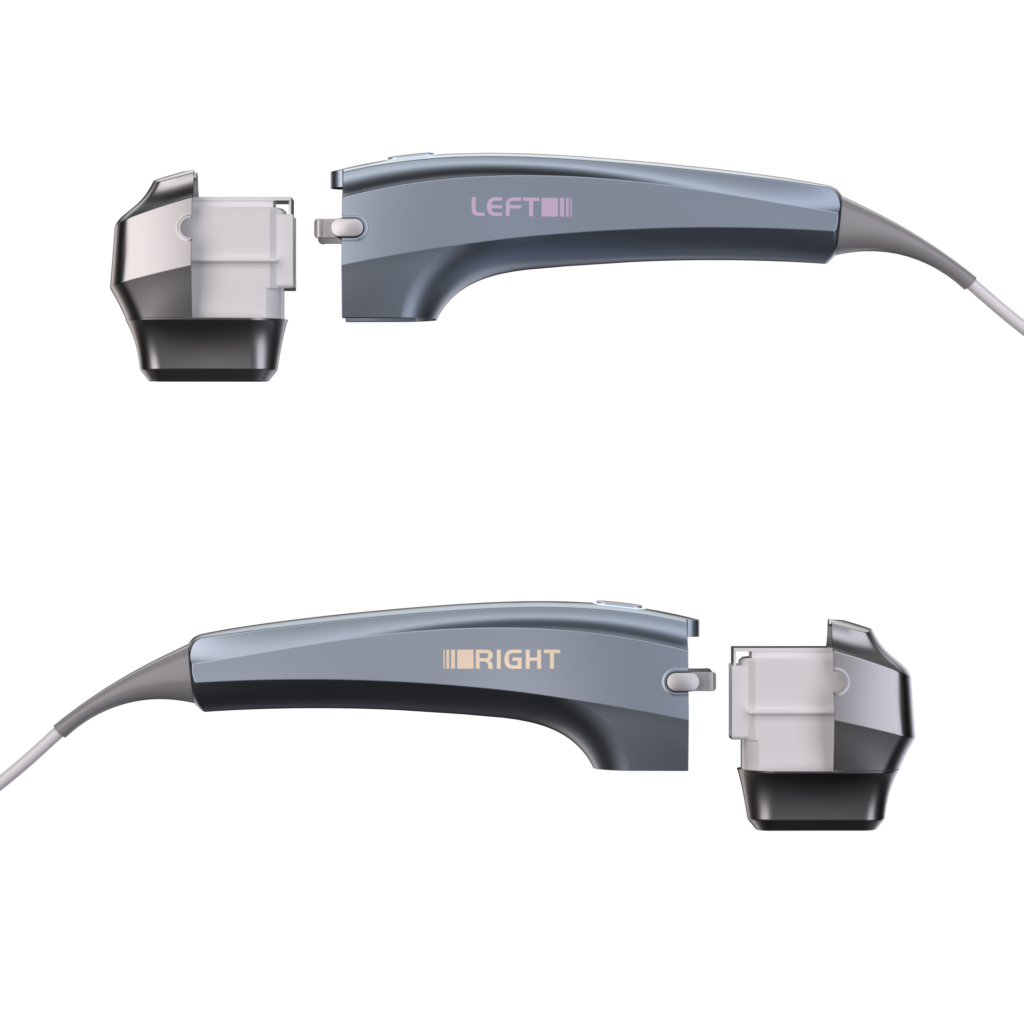

LEFT Ultrasonic Handle
- Bidirectional energy output with large focal‑area energy gathering.
- Compatible with facial probes: 1.5/3.0/4.5 and eye probe 1.5 (5.5MHz).
- Equipped with physical operation keys and working indicator for real‑time control.
RIGHT Ultrasonic Handle
- Same high‑performance structure as the LEFT handle, supporting dual‑handle collaborative treatment to improve efficiency.
- Compatible with body probes: 8.0/13.0/16.0 (2.0MHz) for large‑area body firming.
Superpulse Handle (LEFT/RIGHT)
- Supports MP multi‑point line mode and mixed‑mode nursing.
- Stable energy output, uniform dotting, and strong penetrating power for deep anti‑aging.

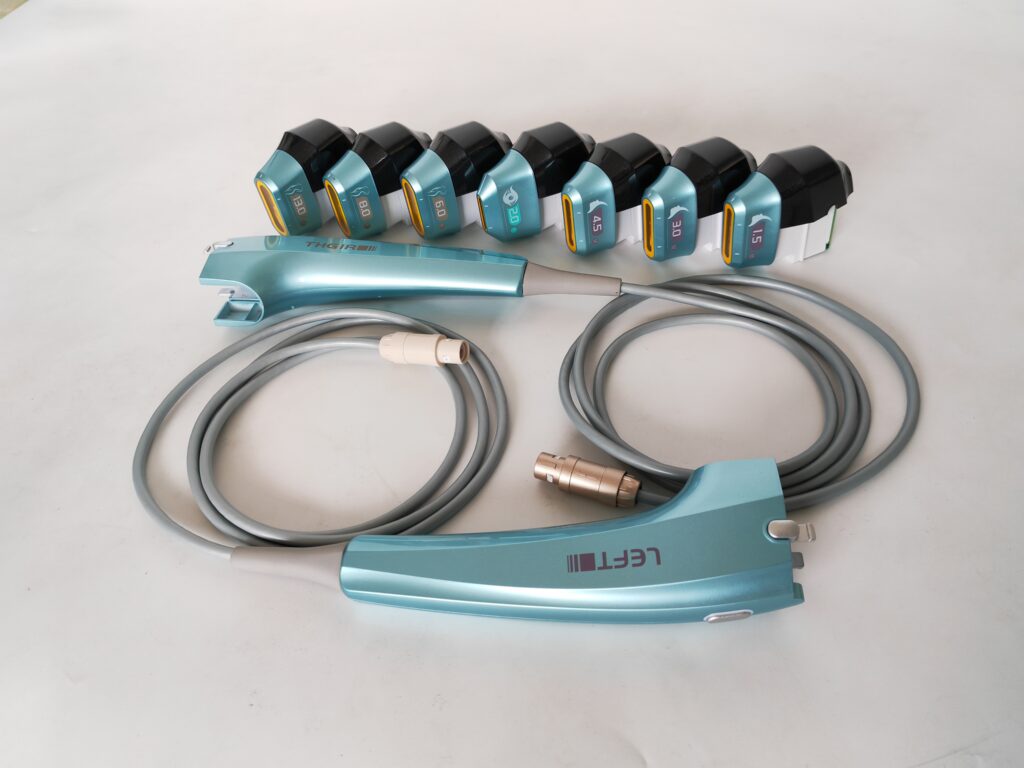

Probe Series & Functions
- Eye‑1.5 5.5MHz: Epidermis care, fine lines, brighten skin tone, shrink pores.
- Face‑1.5 5.5MHz: Superficial skin repair and texture improvement.
- Face‑3.0 5.5MHz: Act on dermis, boost collagen.
- Face‑4.5 4.0MHz: Reach SMAS fascia, lift and tighten the face.
- Body‑8.0/13.0/16.0 2.0MHz: Body skin firming and shape remodeling
Operating System
- Adjustable energy: 0.1J–3.0J; dot spacing: 1.0–2.0; interval: 0.1–1.0 sec.
- Support single‑mode unidirectional output and repeat‑mode bidirectional output.
- Operable via handle buttons or foot pedal, with adjustable prompt volume.
Core Advantages & Selling Points
Layered Precise Treatment
Multi-frequency probes act on different skin layers, achieving targeted lifting, firming and full-area anti-aging rejuvenation.
Multi-frequency probes act on different skin layers, achieving targeted lifting, firming and full-area anti-aging rejuvenation.
Dual-Handle High Efficiency
Synchronous bidirectional dual-handle output greatly improves treatment speed and coverage range.
Synchronous bidirectional dual-handle output greatly improves treatment speed and coverage range.
Intelligent & User-Friendly
13.3-inch HD touch screen, auto probe matching, parameter memory and data recording for simple professional operation.
13.3-inch HD touch screen, auto probe matching, parameter memory and data recording for simple professional operation.
Safe & Non-Invasive
Non-surgical ultrasonic energy, standardized contraindications and post-care rules fully protect client safety.
Non-surgical ultrasonic energy, standardized contraindications and post-care rules fully protect client safety.
Stable & Durable
Industrial structure, global voltage compatibility and convenient maintenance support long-term salon operation.
Industrial structure, global voltage compatibility and convenient maintenance support long-term salon operation.
- Full-Scenario Application
Ideal for facial lifting, eye anti-aging, body tightening, pore refining and overall skin texture optimization.
FAQ
Who is not suitable for 7D‑MAX treatment?
How to maintain the handle and probe after use?
What care is required after treatment?
Can the energy and mode be adjusted during operation?
What should I do if the instrument is abnormal during use?
Who is not suitable for 7D‑MAX treatment?
Pregnant women, breastfeeding women, patients with heart disease/pacemakers, cancer, diabetes, epilepsy, severe hypertension, open wounds, facial fillers, or internal metal implants are not suitable.
How to maintain the handle and probe after use?
Clean the metal part of the probe/handle with 75% alcohol, wipe the surface with normal saline or mild detergent, and avoid liquid entering the host. Do not pull the cable forcibly.
What care is required after treatment?
Avoid injection, filling, or thread embedding for one month; refrain from heavy pigmented food, alcohol, tobacco, spicy food, and aspirin. Do sufficient moisturizing and repair, and avoid strenuous exercise.
Can the energy and mode be adjusted during operation?
Yes. You can switch between MP and Normal modes, adjust energy (0.1J–3.0J), dot spacing, and output mode in real time via the touch screen.
What should I do if the instrument is abnormal during use?
Stop treatment immediately, remove the handle from the skin, unplug the power, and consult official after‑sales service. Do not disassemble the device by yourself.
